Trafic safety
3M

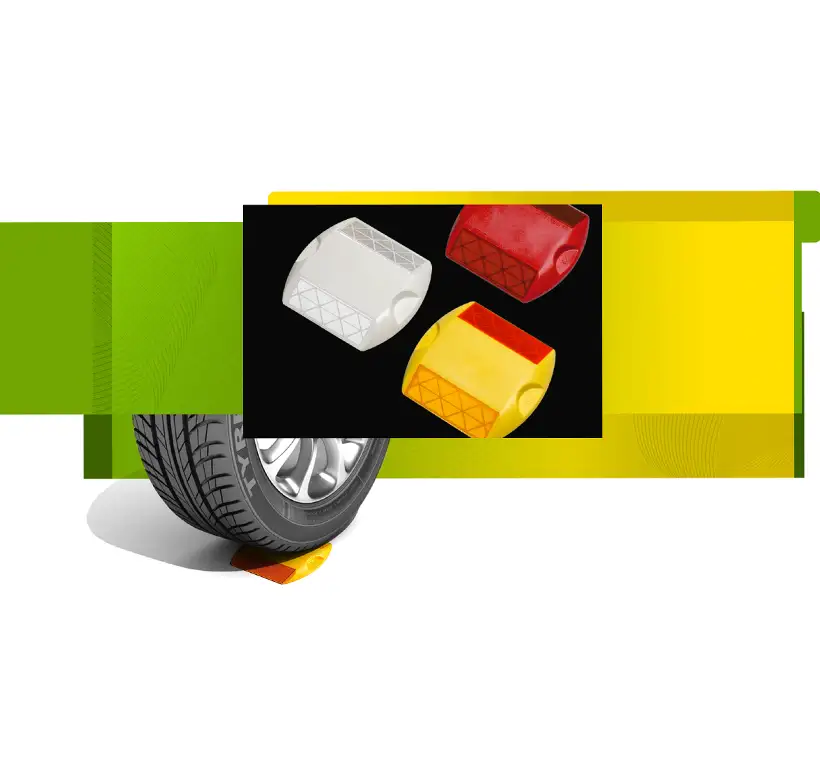

3M Raised pavement marker
Features
- Highly retroreflective microprismatic lens
- Abrasion resistant coating
- Impact resistant
- Long-term nighttime visibility
- Finger-grip design
- Available with pressure sensitive adhesive
Specification
| Adhesive Type | Permanent |
| Application | Curbs, Gore markings, Long lines, Ramps, Lane Lines, Spot delineation, Construction work zones |
| Average Daily Traffic | Medium, High, Low |
| Body Color | Red, yellow, White |
| Construction | Polycarbonate body & lens |
| Directionality | Two-way, One-way |
| Lens Color | Red, Yellow/Red, Yellow, White |
| Liner | Yes |
| Min. Application Temperature | 60° Fahrenheit |
| Performance Features | Wet Reflectivity, Dry Reflectivity |
| Product Code | 290-YR, 290-Y, 290-R, 290-2R, 290-2W, 290-W |
| Product Color | Red, Yellow, White |
| Product Series | 290 |
| Saleable Unit | 100 per carton |
| Snowplow-safe | No |
| Surface Type | Asphalt, concrete |
Dimensions
| Overall Height (imperial) | 3.51 in, 0.63 in, 0.625 in |
| Overall Height (Metric) | 89.2 mm, 15.9 mm, 15.88 mm |
| Overall Length (imperial) | 4 in, 3.5 in |
| Overall Length (Metric) | 101.6 mm, 89.2 mm |
| Overall Width (imperial) | 3.51 in, 4 in |
| Overall Width (Metric) | 89.154 mm, 101.6 mm |
3M Reflective Sheet
3M Diamond Grade Reflective Sheeting Series
3M Diamond Grade DG3 Reflective Sheeting Series 4000 offers full-cube, microprismatic optics that are nearly 100% efficient, resulting in sheeting that returns 58% of available light. This allows for superior performance to accommodate a wide range of vehicle types and viewing distances. DG Sheeting is available in fluorescent colors which provide excellent visibility at dawn and dusk, as well as inclement weather.
Features
- State-of-the-art “full cube” technology
- 100% efficient optical elements
- Delivers optimal performance where and when drivers need it most
- Helps overcome reduced sign illumination from VOA headlights
- Offers excellent life-cycle value
- Suitable for short, medium and long sight distances
- Ideal for disadvantaged sign placement locations such as overhead or left shoulder
Specifications
| Applications | Traffic Signs, Traffic Control Devices, Guide Signs, Rural Roads, Urban Roads, Regulatory Signs |
| Availability | Standard |
| Color | White, Red, Blue, Green, Fluorescent Yellow |
| Construction | Full-cube Prismatic, Micro Prismatic |
| Durability | 10 years |
| Length | 45.7, 50 Linear Yard |
| Liner | Yes |
| Size | 2 in x 50 yd, 36 in x 50 yd, 48 in x 50 yd |
| Substrates | Aluminum, Polyethylene Devices |
3M High Intensity Prismatic Reflective Sheeting
3M High Intensity Prismatic Reflective Sheeting Series 3930 comes in vivid daytime colors that provide 24 hour visibility and an improved optical package increases night time visibility. This sheeting is designed for traffic control signs, work zone signs and delineators.
Features
- Excellent choice for FHWA Minimum Retroreflectivity Compliance
- Meets multiple specifications
- Tougher top coat
- Vivid daytime colors
- Improved optical package
Specifications
| Applications | Traffic Signs, Traffic Control Devices, Guide Signs, Rural Roads, Urban Roads, Regulatory Signs |
| Availability | Standard |
| Color | White, Red, Blue, Green, Yellow |
| Construction | Full-cube Prismatic, Micro Prismatic |
| Durability | 7 years |
| Length | 45.7, 50 Linear Yard |
| Liner | Yes |
| Size | 12 in x 50 yd, 36in * 50 yd, 48in * 50 yd |
| Substrates | Aluminum, Polyethylene Devices |
3M Engineer Grade Prismatic Reflective Sheeting
3M Engineer Grade Prismatic Reflective Sheeting Series 3430 provides improved daytime and nighttime brightness for commercial and non-critical traffic signing.
